Product Overview

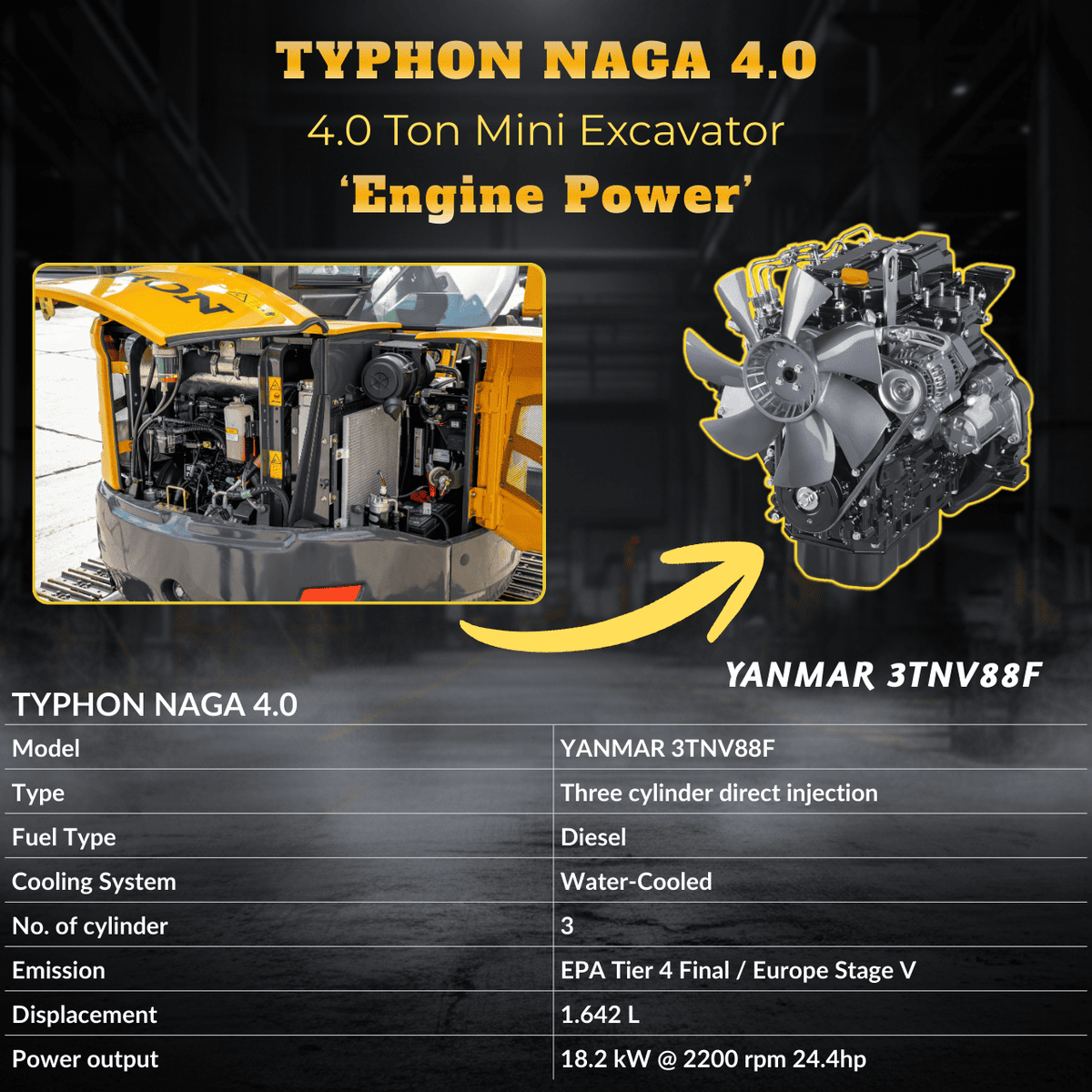

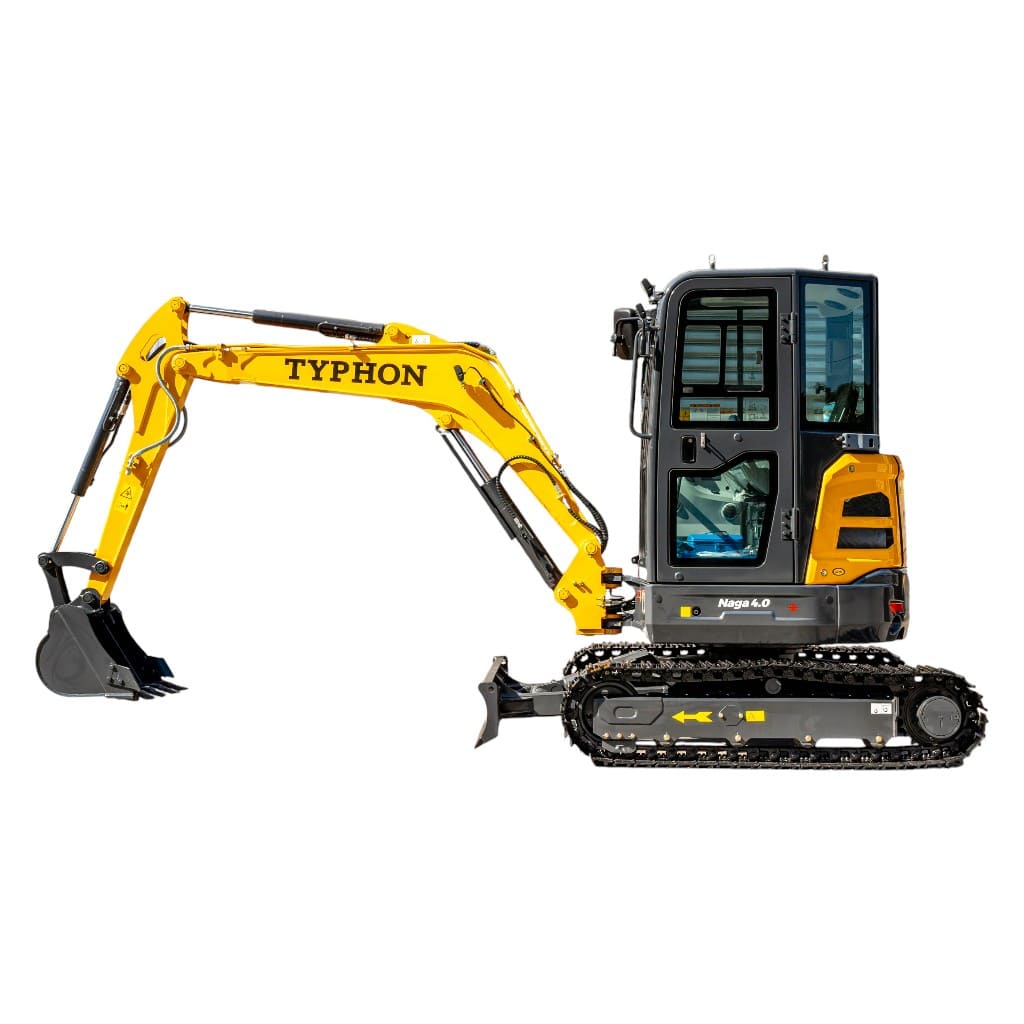

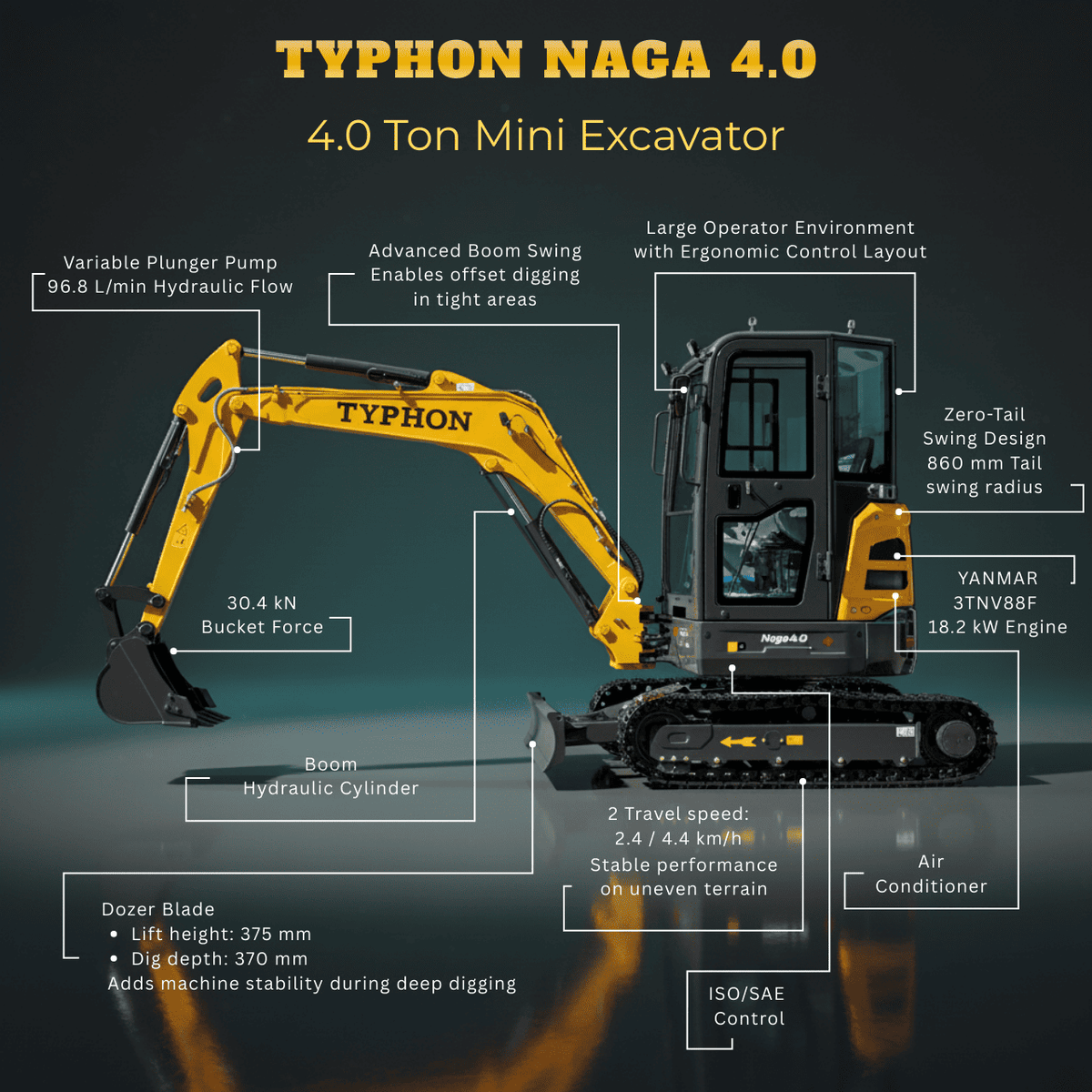

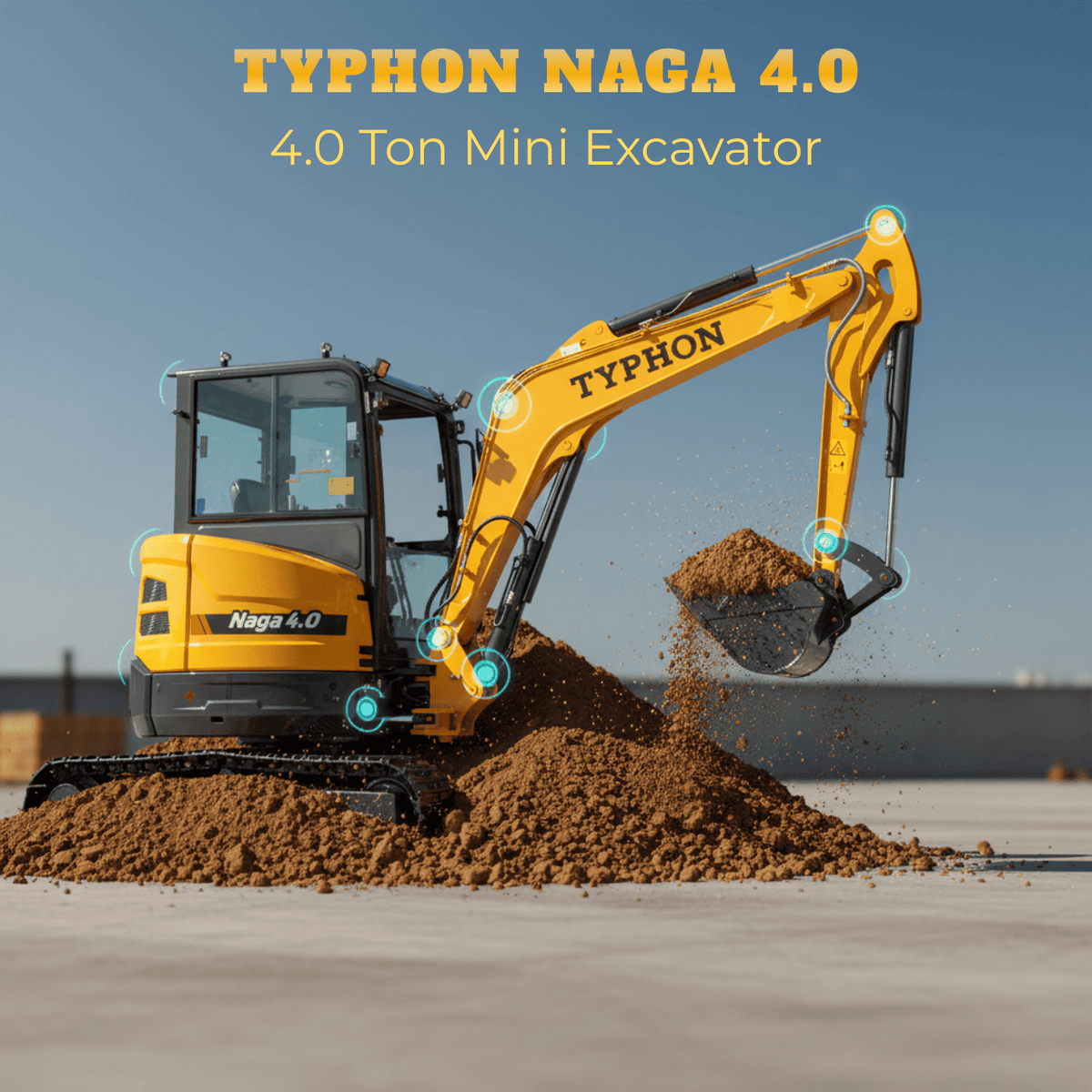

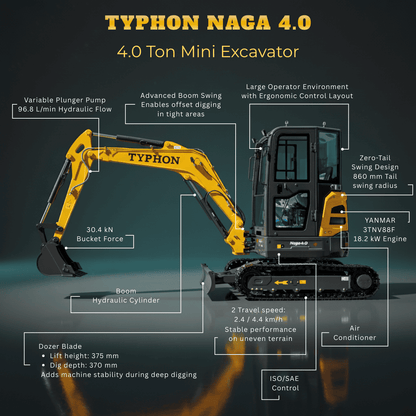

Compact 4-ton mini excavator built for small, urban and confined job sites, powered by a 24.4 HP Yanmar 3TNV88F diesel engine.

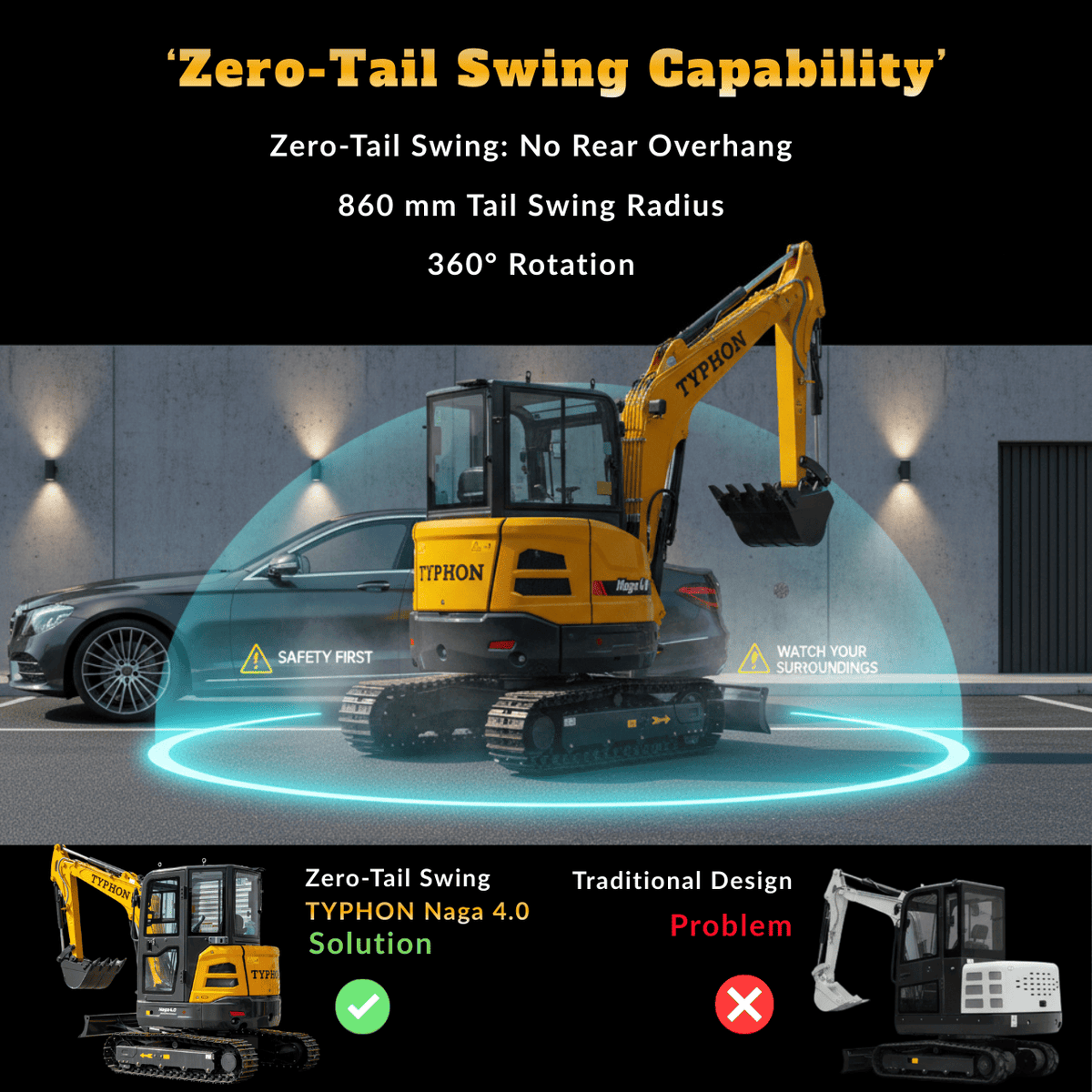

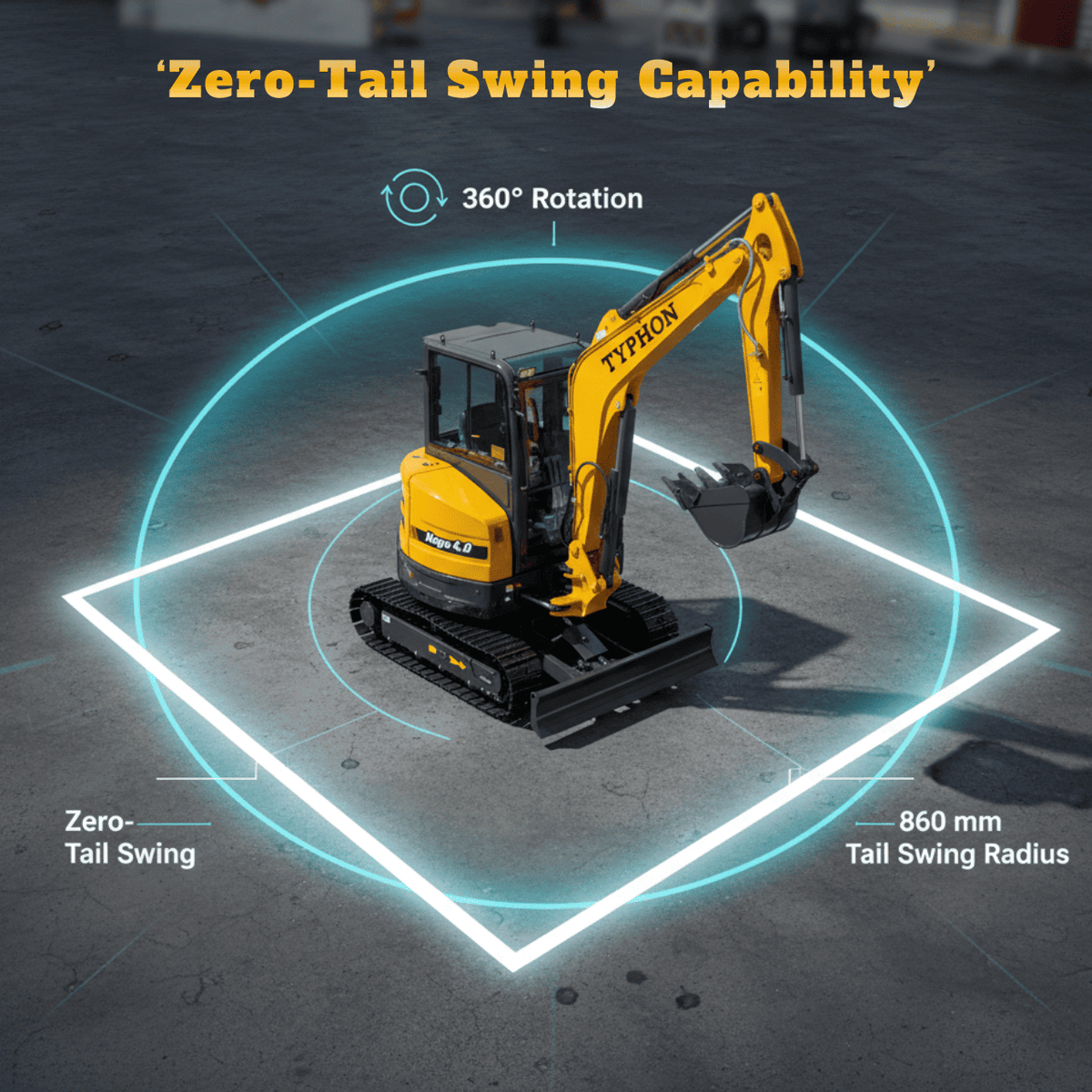

- Zero tail swing, 360° rotation and an 860 mm tail swing radius for tight spaces

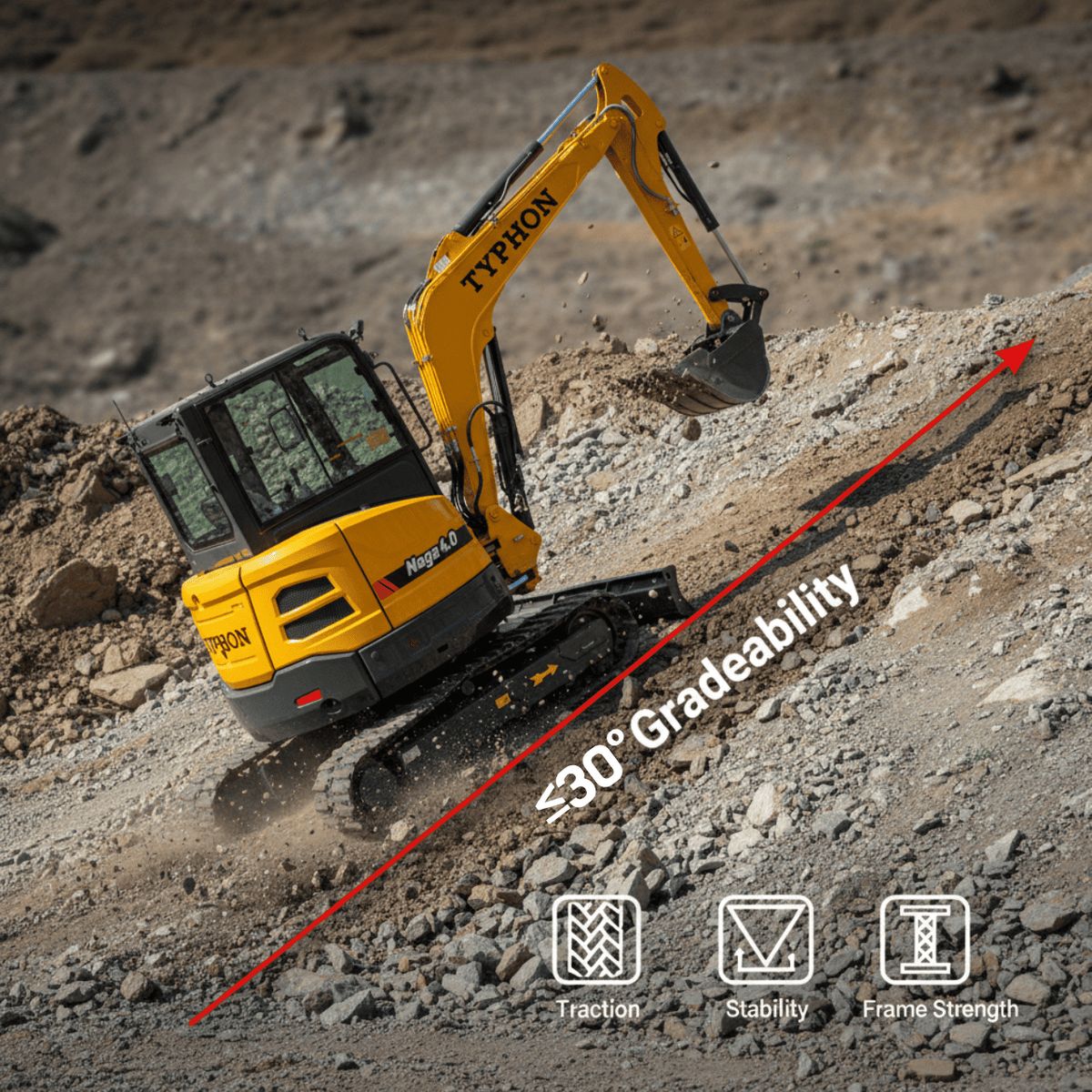

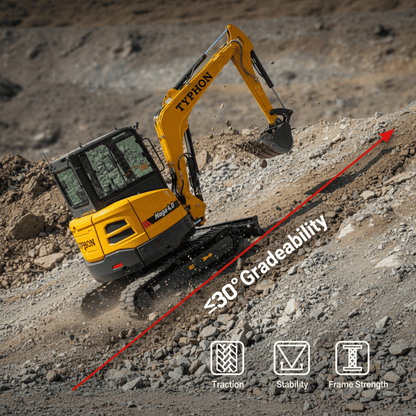

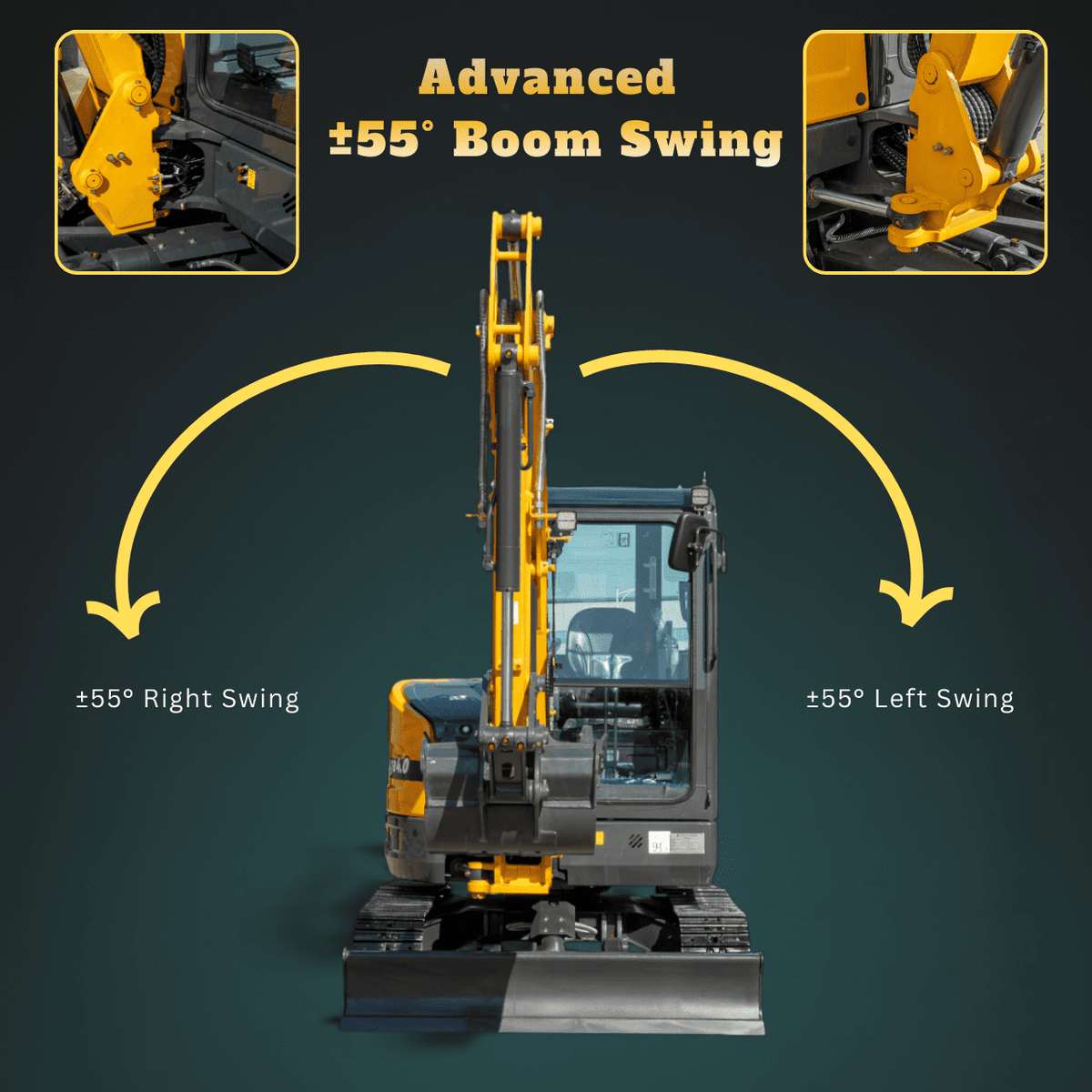

- 30° grade ability and 55° left/right boom swing for stable, precise control

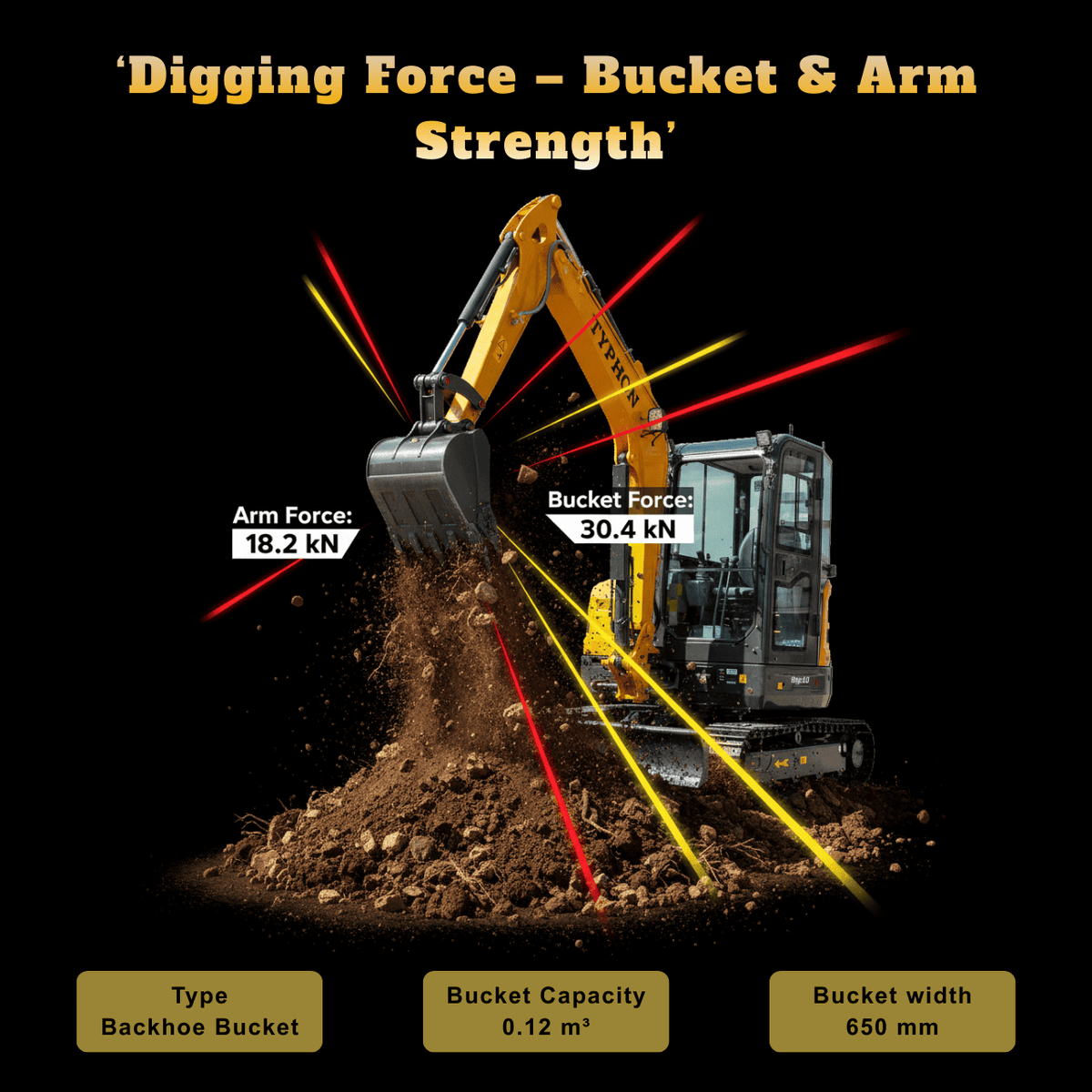

- 30.4 kN bucket force and 18.2 kN arm force for trenching, foundations and tough soil
- Meets EPA Tier 4 Final and EU Stage V emission standards

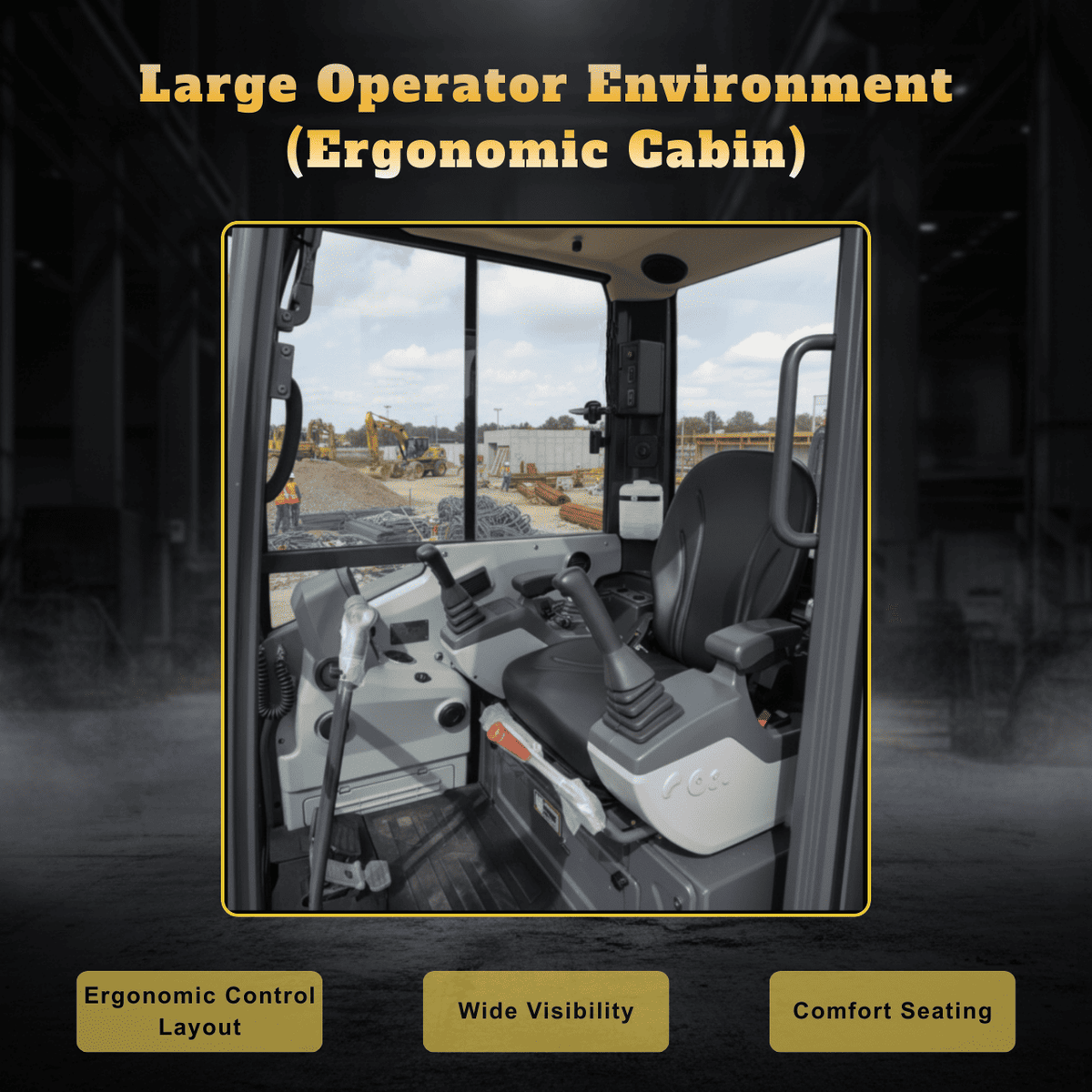

- Cab with A/C and heat, ISO/SAE selectable controls, 7-inch touchscreen, suspension seat and LED work lights
Specifications
| Machine Class | 4 ton |
| Engine | Yanmar 3TNV88F — EPA Tier 4 Final / EU Stage V |
| Horsepower | 24.4 HP |
| Cab | Enclosed with A/C & heat |
| Swing | Zero tail swing, 360° rotation |
| Tail Swing Radius | 860 mm |
| Boom Swing | 55° left / right |
| Grade Ability | 30° |
| Bucket Force | 30.4 kN |
| Arm Force | 18.2 kN |
| Controls | ISO / SAE selectable |
| Display | 7-inch touchscreen |
| Operator Comfort | Adjustable suspension seat, LED work lights |
| EPA Certification | Yes — legal in all 50 states |
Warranty & Returns
4-year machine warranty plus 1-year parts and attachments coverage.
60-day return policy — see our Return Policy page for full terms. Every machine is inspected, fluid-checked and photographed before it leaves the warehouse.
